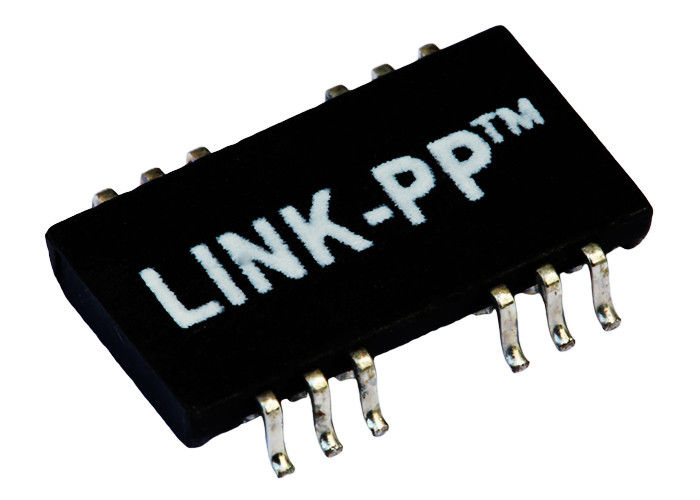

Produkt-Details
Herkunftsort: Guangdong, China
Markenname: LINK-PP
Zertifizierung: UL,RoHS,Reach,ISO
Modellnummer: NS0013B LF
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 400/2000/10K/25K
Preis: $0.06-$3.2
Verpackung Informationen: T&R
Lieferzeit: Auf Lager
Zahlungsbedingungen: TT, Tage NET30/60/90
Versorgungsmaterial-Fähigkeit: 3KK/Month
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
Made in China: |
LINK-PP LP41604ANL |
Anwendungen: |
100/1000 Basis-t |
Familie: |
Lan-Transformator Power+ |
Montage: |
SMT |
Archivi-disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
NS0013B LF |
Bothhand: |
NS0013B LF |
Made in China: |
LINK-PP LP41604ANL |
Anwendungen: |
100/1000 Basis-t |
Familie: |
Lan-Transformator Power+ |
Montage: |
SMT |
Archivi-disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
NS0013B LF = LP41604ANL | ||||||||||||||||||||||||||||||||
| Händler-Teilnummer | NS0013B LF Bothhand |
| ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hersteller | LINK-PP | |||||||||||||||||||||||||||||||
| Gemacht in China | LP41604ANL #LINK-PP | |||||||||||||||||||||||||||||||
| Dokumente | PDF/IGS/STEPP/Cross/Price/Compatible | |||||||||||||||||||||||||||||||
| Beschreibung | Gigabit Magnetics-Energie über Ethernet+ | |||||||||||||||||||||||||||||||
| Bleifreier Status/RoHS-Status | Bleifrei/RoHS konform | |||||||||||||||||||||||||||||||
| Quantität verfügbar | 2.000 PCS/oder 5 Wochen | |||||||||||||||||||||||||||||||
LINK-PP hergestellt in China, Fabrik-Massenproduktions-Liste:
| NS0013B LF | 74990112121 | 13F-64YGD2PLNW2NL | HFJ11-1G02E-L12V3RL |
| 99751813-01 | 74990112121 | XFATM2GA-CLGY1-2MS | XFATM6CB-CLYG1-4MS |
| JX0011D21BNL | J00-0045NL | MTJ-88TX1-FSZ-PG-D1LH-M7 | MIC24013-5104T-LF3 |
| RJLD260TC1 | LP41604ANL | HFJ11-E2450E-L12RL | NS0013B LF |
| RJLD-260TC1 | J1B1211CFD | XFATM2E-Clxu1-4MS | HFJ11-1G02E-L12V3RL |
| NS0013B LF | 6605814-2 | MIC24013-5104T-LF3 | LP41604ANL |
| JXR0-0015NL | RJLBC-060TC1 | HFJ11-1G02E-L12V3RL | XFO656P-CLxu1-4MS |
| 13F-64HND2NL | HY911105AE | NS0013B LF | 24F-2011EGYD2SNWXNL |
| HFJ11-E2450E-RL | LP41604ANL | HFJ11-E2450E-L11RL | NS0013B LF |
| SJTAB-40LB02-L | RJLB-001TC1 | 13F-64GYDPNS2NL | XFAMT6SA-CLGY1-4MS |
| TG111-HPE3NZRL | NS0013B LF | HFJ11-1G02E-L12V3RL | 24G-66JGYDPLZ2NL |
| 74990112121 | 74990112121 | TG111-HPE3NZRL | HFJ11-1G02E-L12V3RL |
NS0013B LF ELEKTRISCHES SPECFICATIONS: @25℃
Verhältnis 1.Turn (3%):
TX=1CT: 1CT RX=1CT: 1CT
2.Inductance OCL:
350uH MINUTE @ 100KHz 0.1V
Verlust 3.Insertion:
-1.1dB MAX @ 1-100MHz
Verlust 4.Return:
-16dB MINUTE @ 1-30MHz
-12dB MINUTE @ 30-60MHz
-10dB MINUTE @ 60-100MHz
Gespräch 5.Cross:
-40dB MINUTE @ 1-30MHz
-35dB MINUTE @ 30-60MHz
-30dB MINUTE @ 60-100MHz
Ablehnung des Modus-6.Common:
-30dB MINUTE @ 1-50MHz
-20dB MINUTE @ 50-150MHz
Test 7.Hipot: 1500Vrms
8.Operating Temperaturspanne: -40℃ ZU +85℃.
A.Designed zur Umfeldaufgabe, wie SOHO (ADSL-Modem),
LAN-auf-Motherboard (LOM), Nabe und Schalter.
Spezifikation B.Meets IEEE 802,3.
C.Maximum-Rückfluttemperatur ist 260℃, 10s, 3mal.
