Produkt-Details
Herkunftsort: China
Markenname: LINK-PP
Zertifizierung: RoHS, REACH SVHC, Low-Halogen
Modellnummer: 747548101
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 10 Stück
Preis: $5.15
Verpackung Informationen: Tablett
Lieferzeit: 3-7 Tage
Zahlungsbedingungen: Western Union, T/T, D/P, D/A
Versorgungsmaterial-Fähigkeit: 3kk/Monat
Teilenummer: |
7 |
Produkttyp: |
S |
Anzahl der Ports: |
1 |
Montageart:: |
T |
EMI-Federfinger: |
W |
Lichtpipe: |
ICH |
Beendigung: |
P |
Teilenummer: |
7 |
Produkttyp: |
S |
Anzahl der Ports: |
1 |
Montageart:: |
T |
EMI-Federfinger: |
W |
Lichtpipe: |
ICH |
Beendigung: |
P |
| Part Number | 747548101 |
|---|---|
| Series | 74754 |

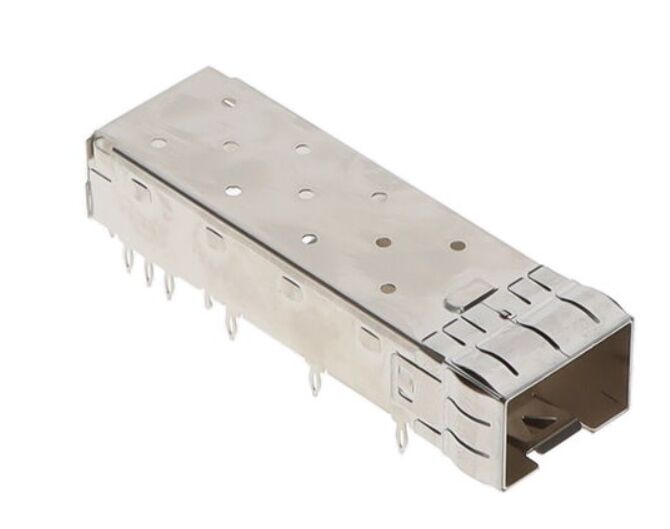

| Product Type | SFP+ Cage Assembly |
| Configuration | 1 × 1 (Single Port) |
| Connector Type | SFP+ (Backward compatible with SFP) |
| Mounting Type | Through Hole, Right Angle |
| Termination Method | Press-Fit (Compliant Pin) |
| Shielding | EMI Shielded with Spring Fingers |
| Material (Cage) | Copper Alloy, 0.25 mm thickness, Nickel Plated |
| Material (Spring Finger) | Stainless Steel |
| Port Compatibility | SFP+ and SFP Transceivers |
| Light Pipe | Optional Light Pipe Assembly Available |
| PCB Thickness Requirement | ≥ 1.57 mm (Single-sided) |
| Press-Fit Pin Length | 3.05 mm |
| Dimensions (L × W × H) | 49 × 15.12 × 10.85 mm |
| Operating Temperature Range | -40°C to +85°C (typical requirement) |
| RoHS Compliance | No Exemptions / Compliant |
| Packaging Type | Tray |
| Application | Telecom, Data Centers, Networking Equipment |
