Produkt-Details
Herkunftsort: China
Markenname: LINK-PP
Zertifizierung: UL,RoHS,REACH,ISO
Modellnummer: B78476A8247A003
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 500 STÜCK
Preis: $0.2-$0.37
Verpackung Informationen: T&R, 500 Stk./Rolle
Lieferzeit: Schiffe innerhalb von 3 Tagen
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 4600K.PCS/Monat
Transformatortyp: |
Basis-t LAN 10/100 |
Teilenummer: |
B78476A8247A003 |
Anzahl der Ports: |
Single Port |
Induktivität: |
350µH |
Isolationsspannung: |
1500 VAC |
Montageart: |
Oberflächenmontage |
Transformatortyp: |
Basis-t LAN 10/100 |
Teilenummer: |
B78476A8247A003 |
Anzahl der Ports: |
Single Port |
Induktivität: |
350µH |
Isolationsspannung: |
1500 VAC |
Montageart: |
Oberflächenmontage |
| Parameter | Specification |
|---|---|

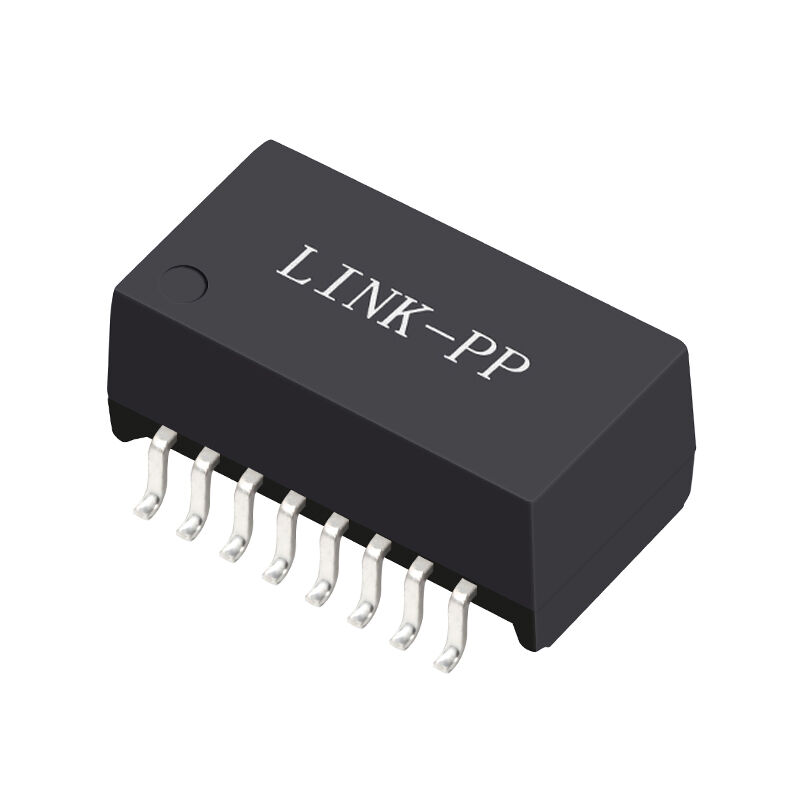

| Part Number | B78476A8247A003 |
| Product Type | LAN Magnetics Module |
| Ethernet Standard | 10/100Base-T |
| Number of Ports | Single Port |
| Package Type | Surface Mount (SMD) |
| Core Material | Ferrite Toroid |
| Isolation Voltage | 1500 VAC |
| Operating Temperature | −40 °C to +85 °C |
| Weight | Approx. 0.8 g |
| Compliance | IEEE 802.3, RoHS |
| Parameter | Test Condition | Specification |
|---|---|---|
| Turns Ratio (Primary : Secondary) | -- | 1CT : 1CT ±3% |
| Inductance (OCL) | 100 kHz, 100 mV, 8 mA DC Bias | ≥ 350 µH |
| Voltage Test | 50 Hz, 1 min | 1500 V AC |
| Insertion Loss | 0.1 - 100 MHz | ≤ −1.0 dB |
| Return Loss | 1 - 30 MHz | ≥ 18 dB |
| Return Loss | 40 MHz | ≥ 16 dB |
| Return Loss | 50 MHz | ≥ 14 dB |
| Return Loss | 60 - 80 MHz | ≥ 12 dB |
| Crosstalk | 30 MHz | ≥ −43 dB |
| Crosstalk | 60 MHz | ≥ −37 dB |
| Crosstalk | 100 MHz | ≥ −33 dB |
| Differential-to-Common Mode Rejection (DCMR) | 30 MHz | ≥ −43 dB |
| Differential-to-Common Mode Rejection (DCMR) | 60 MHz | ≥ −37 dB |
| Differential-to-Common Mode Rejection (DCMR) | 100 MHz | ≥ −33 dB |
| Parameter | Specification |
|---|---|
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +85 °C |
| Soldering Standard | IPC / JEDEC J-STD-020D |
| RoHS | Compatible |
