Produkt-Details
Herkunftsort: Guangdong, China
Markenname: LINK-PP
Zertifizierung: UL,RoHS,Reach,ISO
Modellnummer: S16503G
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 400/2000/10k/25k
Preis: $0.06-$3.2
Verpackung Informationen: T & r
Lieferzeit: Aktie
Zahlungsbedingungen: TT, Net30/60/90 Tage
Versorgungsmaterial-Fähigkeit: 3kk/Monat
Spezifikation: |
749013010 |
Teile-Nr: |
LP2019ANL |
Schnittstelle: |
10/100 Mbit/s Leistung |
Familie: |
Telekommunikationstransformator |
Stifte: |
16PINs |
Proben: |
Kostenlos verfügbar |
Archiv zur Verfügung: |
PDF/3D/ISG/Stp/Step/Datenblatt |
Spezifikation: |
749013010 |
Teile-Nr: |
LP2019ANL |
Schnittstelle: |
10/100 Mbit/s Leistung |
Familie: |
Telekommunikationstransformator |
Stifte: |
16PINs |
Proben: |
Kostenlos verfügbar |
Archiv zur Verfügung: |
PDF/3D/ISG/Stp/Step/Datenblatt |

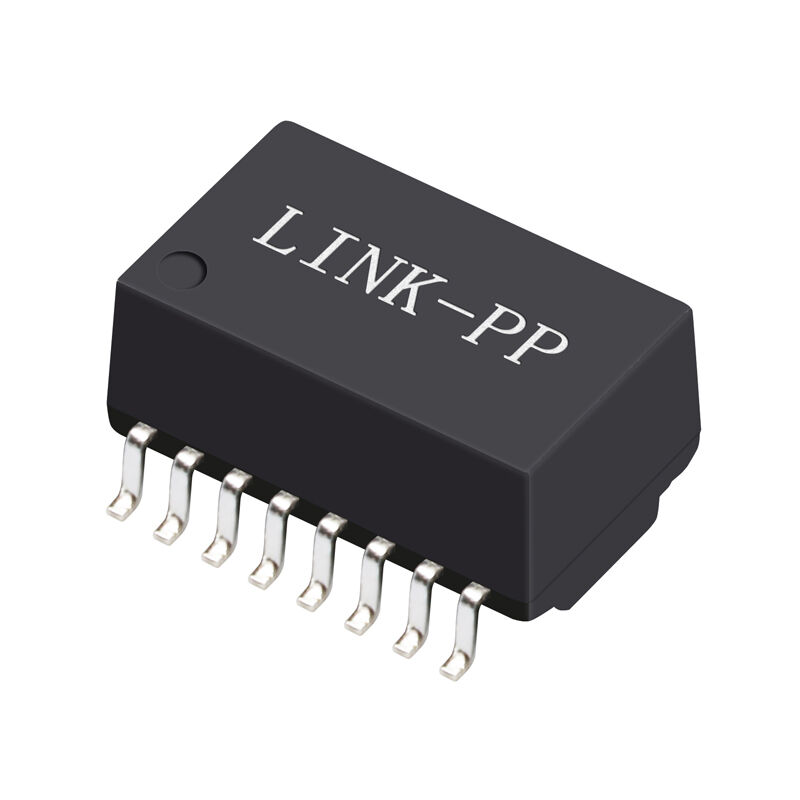

S16503G LAN Magnetic Isolation Transformer engineered for Fast Ethernet (10/100BASE-TX) applications. Featuring a 1:1 turns ratio, low insertion loss, robust 1500VAC isolation, and strong crosstalk/common mode rejection, S16503G ensures stable, noise-resilient Ethernet PHY interface performance.
Its compact SMD package and industry-standard electrical characteristics make it ideal for RJ45 network ports, Ethernet switches, routers, industrial IoT gateways, and communication infrastructure boards. Available from trusted sources including EASTEVER, JWD, and CND-tek with global distribution and reel packaging for high-volume assembly. Designed for IEEE 802.3 compliant networks and optimized for modern PCB assembly workflows.
| Parameter | Specification |
|---|---|
| Model Number | S16503G |
| Product Type | Ethernet LAN Magnetics / Isolation Transformer |
| Supported Ethernet Standard | IEEE 802.3 10/100BASE-TX |
| Turns Ratio (Tx / Rx) | 1CT : 1CT ±5% |
| Open Circuit Inductance (OCL) | ≥ 350 µH @ 100 kHz, 0.1 V, 8 mA DC bias |
| Leakage Inductance | ≤ 0.5 µH @ 100 kHz, 0.1 V |
| DC Resistance (DCR) | ≤ 1.4 Ω |
| Insertion Loss | ≤ -1.1 dB @ 1-100 MHz |
| Return Loss | ≥ -18 dB (1-30 MHz) ≥ -12 dB (30-80 MHz) |
| Crosstalk | ≥ -30 dB @ 1-100 MHz |
| Common Mode Rejection (CMR) | ≥ -30 dB @ 1-100 MHz |
| Isolation Voltage (Hi-Pot) | 1500 VAC, 60 s, 1 mA |
| Operating Temperature Range | 0 °C to +70 °C |
| Storage Temperature Range | -20 °C to +125 °C |
| Mounting Type | Surface Mount Device (SMD) |
| Compliance | RoHS Compliant |
