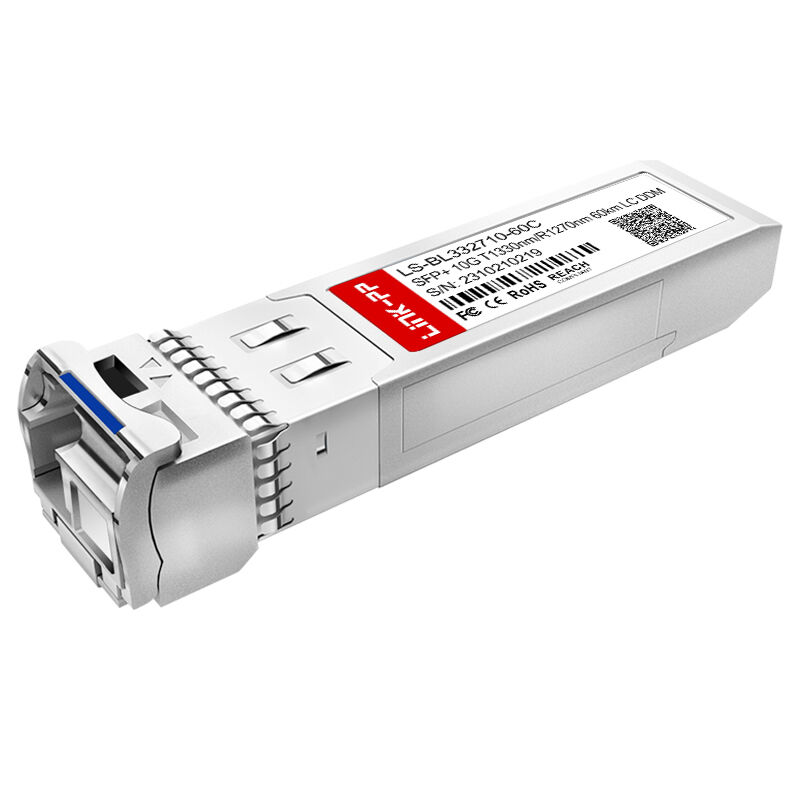

Produkt-Details
Herkunftsort: China
Markenname: LINK-PP
Zertifizierung: SFF-8431, SFF-8432, SFF-8472, IEEE 802.3ae
Modellnummer: SFP-10G32-BX60
Dokument: LS-BL332710-60C.pdf
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 5 Stück
Preis: US$14.90
Verpackung Informationen: ESD-Antistatikbeutel
Lieferzeit: 300 im Lager, Lieferung innerhalb von 3 Tagen
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 5kk/Monat
Teilenummer: |
SFP-10G32-BX60 |
Kompatibel: |
LS-BL332710-60C |
Formfaktor: |
SFP+ |
Serie: |
10GBASE-BX |
Datenrate: |
10gbit / s |
Wellenlänge: |
1330nm-TX/1270nm-RX |
Übertragungsentfernung: |
60 km |
Stecker: |
Simplex lc |
Übertragungsmodus: |
Bidirektional (BiDi), Einzelfaser |
Typ des Sendeapparates: |
DFB-Laser |
Unterstützung von DDM/DOM: |
Ja |
Stromversorgungsspannung: |
+3,3 V |
Verlustleistung: |
< 1,4 W |
Betriebstemperatur: |
0 °C bis 70 °C (kommerziell) |
Hot-Pluggable: |
Ja, SFP+ MSA-konform |
Standards Compliance: |
IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 |
Teilenummer: |
SFP-10G32-BX60 |
Kompatibel: |
LS-BL332710-60C |
Formfaktor: |
SFP+ |
Serie: |
10GBASE-BX |
Datenrate: |
10gbit / s |
Wellenlänge: |
1330nm-TX/1270nm-RX |
Übertragungsentfernung: |
60 km |
Stecker: |
Simplex lc |
Übertragungsmodus: |
Bidirektional (BiDi), Einzelfaser |
Typ des Sendeapparates: |
DFB-Laser |
Unterstützung von DDM/DOM: |
Ja |
Stromversorgungsspannung: |
+3,3 V |
Verlustleistung: |
< 1,4 W |
Betriebstemperatur: |
0 °C bis 70 °C (kommerziell) |
Hot-Pluggable: |
Ja, SFP+ MSA-konform |
Standards Compliance: |
IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 |
The SFP-10G32-BX60 is a BiDi 10G SFP+ transceiver designed for single-fiber, long-reach optical communication up to 60 km. Operating over a 1310 nm TX / 1550 nm RX wavelength pair, it supports 10.3125 Gb/s data rates for applications such as enterprise networks, telecom backhaul, and FTTX.
This hot-pluggable module features low power consumption, DDM/DOM support, and is fully compliant with SFP+ MSA, IEEE 802.3ae, and RoHS standards, ensuring reliable performance in dense, high-bandwidth network environments.
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Bit Rate | BR | 2.5 | 10.3 | — | Gb/s |
| Max. Supported Link Length | Lmax | — | — | 60 |
km |

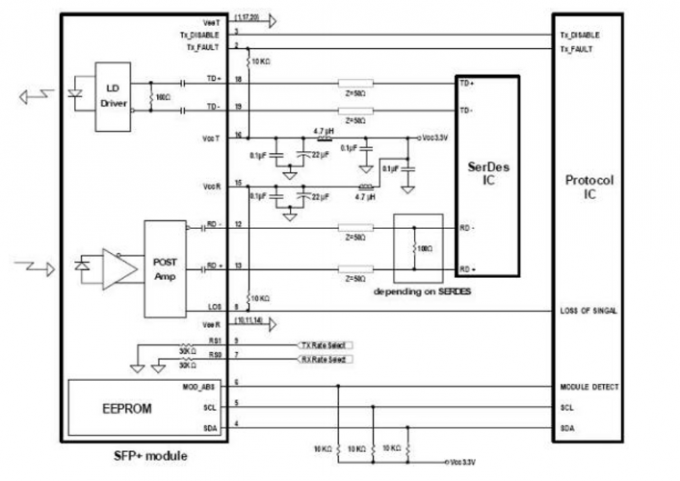

| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | Ts | -40 | 85 | °C |
| Supply Voltage | Vcc | -0.5 | 3.6 | V |
| Parameter | Symbol | Min | Typ | Max | Unit | Ref |
|---|---|---|---|---|---|---|
| Power Supply Voltage | Vcc | 3.14 | 3.3 | 3.45 | V | — |
| Power Supply Current | Icc | — | — | 430 | mA | — |
| Surge Current | Isurge | — | — | +30 | mA | — |
| Transmitter CML Inputs (Differential) | Vin | 150 | — | 1200 | mVpp | AC coupled |
| Input Impedance (Differential) | Zin | 85 | 100 | 115 | Ω | Rin>100kΩ @ DC |
| Tx_DISABLE Input Voltage – High | — | 2 | — | Vcc+0.3 | V | — |
| Tx_DISABLE Input Voltage – Low | — | 0 | — | 0.8 | V | — |
| Tx_FAULT Output Voltage – High | — | 2 | — | Vcc+0.3 | V | Io=400µA |
| Tx_FAULT Output Voltage – Low | — | 0 | — | 0.5 | V | Io=-4.0mA |
| Receiver CML Outputs (Differential) | Vout | 350 | — | 700 | mVpp | AC coupled |
| Output Impedance (Differential) | Zout | 85 | 100 | 115 | Ω | — |
| Rx_LOS Output Voltage – High | — | 2 | — | Vcc+0.3 | V | Io=400µA |
| Rx_LOS Output Voltage – Low | — | 0 | — | 0.8 | V | Io=-4.0mA |
| MOD_DEF(2:0) VOH | — | 2.5 | — | — | V | — |
| MOD_DEF(2:0) VOL | — | 0 | — | 0.5 | V | — |
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Power Budget | — | — | 21 | — | dB |
| Data Rate | — | 0.6 | 10.3125 | 11.3 | Gb/s |
| Transmitter (Tx) | |||||
| Centre Wavelength | λc | 1260 | 1270 | 1280 | nm |
| Spectral Width (-20Db) | Δλ | — | — | 1 | nm |
| Side Mode Suppression Ratio | SMSR | 30 | — | — | dB |
| Average Output Power | Pout, AVG | 1 | — | 6 | dBm |
| Extinction Ratio | ER | 3.5 | — | — | dB |
| Average Power of the OFF Transmitter | — | — | — | -30 | dB |
| RIN | — | — | — | -128 | dB/Hz |
| TX Disable Assert Time | toff | — | — | 10 | µs |
| Receiver (Rx) | |||||
| Centre Wavelength | λc | 1320 | — | 1340 | nm |
| Receiver Sensitivity | PIN | — | — | -20 | dBm |
| Receiver Overload | PMAX | — | — | -6 | dBm |
| LOS De-Assert | LOSD | — | — | -21 | dBm |
| LOS Assert | LOSA | — | — | -30 | dBm |
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Power Budget | — | — | 21 | — | dB |
| Data Rate | — | 2.5 | 10.3 | — | Gb/s |
| Transmitter (Tx) | |||||
| Centre Wavelength | λc | 1320 | 1330 | 1340 | nm |
| Spectral Width (-20Db) | Δλ | — | — | 1 | nm |
| Side Mode Suppression Ratio | SMSR | 30 | — | — | dB |
| Average Output Power | Pout,AVG | 1 | — | 6 | dBm |
| Extinction Ratio | ER | 3.5 | — | — | dB |
| Average Power of OFF Transmitter | — | — | — | -30 | dB |
| RIN | — | — | — | -128 | dB/Hz |
| TX Disable Assert Time | toff | — | — | 10 | µs |
| Receiver (Rx) | |||||
| Centre Wavelength | λc | 1260 | — | 1280 | nm |
| Receiver Sensitivity | PIN | — | — | -20 | dBm |
| Receiver Overload | PMAX | — | — | -6 | dBm |
| LOS De-Assert | LOSD | — | — | -21 | dBm |
| LOS Assert | LOSA | — | — | -30 | dBm |

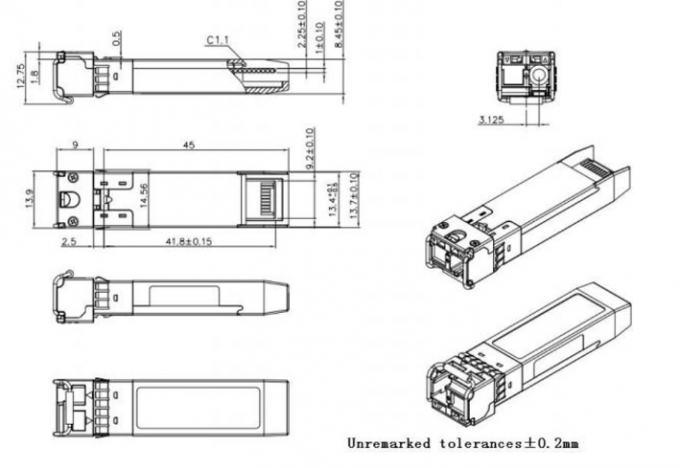

Notes:
1. Output is coupled into a 9/125um SMF.
2. Measured with worst ER, BER less than 1E-12, and PRBS -1 at 10.3125Gbps.
