Produkt-Details
Herkunftsort: Guangdong, Huizhou
Markenname: LINK-PP
Zertifizierung: REACH, RoHS, FCC
Modellnummer: LPJE686-0DNL
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 1pcs, kostenlose Proben
Preis: $0.09-$0.8
Verpackung Informationen: Behälter, Band u. Spule
Lieferzeit: 1-3 Tage
Zahlungsbedingungen: T/T, L/C, CAD/D/P, OA
Versorgungsmaterial-Fähigkeit: 6000k-pcs/Monat
Teile-Nr.: |
LPJE686-0DNL |
Anzahl der Ports: |
Gestapelte 2x4 Ports |
Länge: |
57.0 mm |
Breite: |
27.0mm |
Höhe: |
16.4 mm |
Betriebstemperatur: |
– 40°C zu +85°C |
Teile-Nr.: |
LPJE686-0DNL |
Anzahl der Ports: |
Gestapelte 2x4 Ports |
Länge: |
57.0 mm |
Breite: |
27.0mm |
Höhe: |
16.4 mm |
Betriebstemperatur: |
– 40°C zu +85°C |

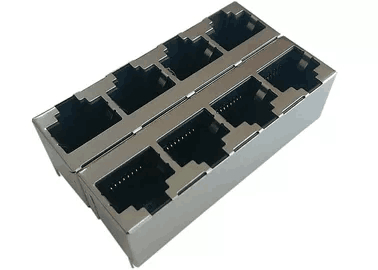

The Vertical RJ45 2×4 Connector is designed for high-density Ethernet applications requiring stable signal transmission, durable mechanical performance, and long-term reliability. It is commonly used in network switches, communication equipment, industrial controllers, and embedded Ethernet systems.
| Parameter | Specification |
|---|---|
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 min |
| Parameter | Specification |
|---|---|
| Housing Material | Glass-Filled Polyester (PBT), Black, UL94V-0 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Flash over Nickel |
| Shield Material | Copper Alloy with Nickel Plating, 0.20 mm thickness |
| Operating Life | ≥ 750 mating cycles |
| Parameter | Specification |
|---|---|
| Storage Temperature | –40°C to +85°C |
| Operating Temperature | –40°C to +85°C |
| Wave Solder Temperature | 250°C for 5 seconds |
| UL Certification | File No. E484635 |
