Produkt-Details
Place of Origin: Guangdong, Huizhou
Markenname: LINK-PP
Zertifizierung: SFP+ MSA, REACH, RoHS, FCC
Model Number: LS‑BL332710‑60C
Dokument: LS-BL332710-60C.pdf
Zahlungs-u. Verschiffen-Ausdrücke
Minimum Order Quantity: 1
Preis: $ 10
Packaging Details: Foam + Carton
Delivery Time: 1-3days
Payment Terms: T/T, L/C, CAD / D/P, OA
Supply Ability: 1300 in Stock
Teile-Nr.: |
LS-BL332710-60C |
Handelstemperaturspanne: |
0 bis 70 ° C (32 bis 158 ° F) |
Mit heißem Stecker: |
Ja |
Protokolle: |
SFP+ MSA, SFF-8431, SFF-8472, CPRI |
Digital-Diagnoseüberwachung: |
Ja |
Kompatible Marken: |
Cisco |
Distanz: |
≤60 km |
Formfaktor: |
SFP+ |
Typ: |
Bidi |
Datenrate: |
10g |
Stecker: |
Simplex lc |
Wellenlänge: |
1330 nm Senden / 1270 nm Empfang |
Teile-Nr.: |
LS-BL332710-60C |
Handelstemperaturspanne: |
0 bis 70 ° C (32 bis 158 ° F) |
Mit heißem Stecker: |
Ja |
Protokolle: |
SFP+ MSA, SFF-8431, SFF-8472, CPRI |
Digital-Diagnoseüberwachung: |
Ja |
Kompatible Marken: |
Cisco |
Distanz: |
≤60 km |
Formfaktor: |
SFP+ |
Typ: |
Bidi |
Datenrate: |
10g |
Stecker: |
Simplex lc |
Wellenlänge: |
1330 nm Senden / 1270 nm Empfang |

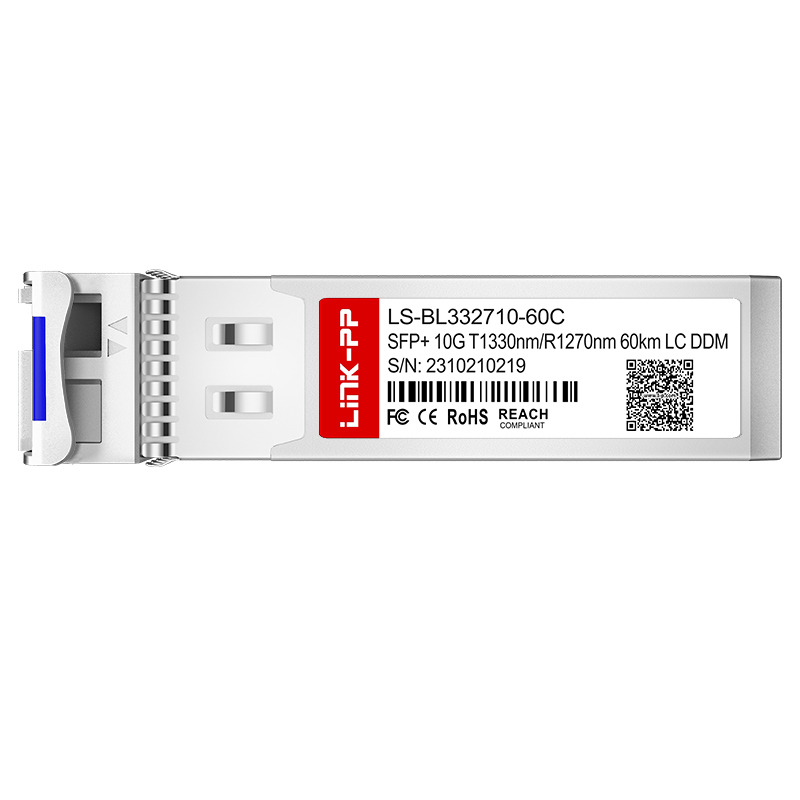

The LS-BL332710-60C, manufactured by LINK-PP, is a high-performance and cost-effective bidirectional (BiDi) SFP+ optical transceiver module. It is engineered to support data transmission speeds of up to 10 Gbps over single-mode fiber (SMF), with a maximum reach distance of 60 kilometers.
This transceiver module adheres to the 10GBASE-BX60-D standard, using 1330 nm for transmission (TX) and 1270 nm for reception (RX). It features a simplex LC connector to ensure reliable optical connectivity.
Additionally, the LS-BL332710-60C supports digital optical monitoring (DOM), enabling real-time diagnostics and performance monitoring. It is fully compliant with the SFP+ Multi-Source Agreement (MSA) and the SFF-8472 standards, ensuring compatibility and interoperability within various network systems.
| Compatible Part Number | Corresponding Brand |
|---|---|
| SFP-10G-BX60D | Cisco |
| SFP-10G32-BX60 | FS |
| 10G-SFPP-BXD-60K | Brocade |
| GP-SFP-10GBX-D-60 | |
| 10GB-BX60-D | Extreme |
| SFP-10G-BXD6 | HW |
| EX-SFP-10GE-BX32-60 | Juniper |
Q1: What are the core optical performance parameters of the LS-BL332710-60C, and what fiber type does it require?
A1: Core optical parameters: Transmitter (TX) center wavelength 1320~1340nm (typical 1330nm) with output power +1~+6dBm; Receiver (RX) center wavelength 1260~1280nm (typical 1270nm) with receiver sensitivity ≤-20dBm (BER ≤1×10⁻¹²) and overload ≥-6dBm. As a bidirectional (BiDi) module, it must be used with single-mode fiber (SMF) to achieve 60km transmission.
Q2: What information can the Digital Optical Monitoring (DOM) function of the 10Gbe SFP+ Transceiver provide, and how is it accessed?
A2: DOM supports real-time monitoring of temperature, voltage, TX bias current, and TX/RX optical power, complying with the SFF-8472 standard. Data can be accessed via the host device management interface (CLI/web) or professional testing equipment.
Q3: What certifications does the LINK-PP LS-BL332710-60C transceiver have?
A3: It has SFP+ MSA, REACH, RoHS, and FCC certifications.
Q4: What is the minimum order quantity and price for this transceiver?
A4: The minimum order quantity is 1 unit, and the price is $10 per unit.
Q5: How is the LINK-PP LS-BL332710-60C transceiver packaged, and what is the delivery time?
A5: The transceiver is packaged with foam and carton, and the delivery time is between 1 to 3 days.
Q6: What payment terms are accepted for purchasing this transceiver?
A6: Accepted payment terms include T/T, L/C, CAD / D/P, and OA.
Q7: What precautions should be taken during the installation and use of the LS-BL332710-60C SFP+ Modules?
A7: Key precautions include:
