Herkunftsort: Guangdong, China
Markenname: LINK-PP
Zertifizierung: UL,ROHS,Reach,ISO
Modellnummer: LPJD0713DNL
Dokument: LPJD0713DNL.pdf
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 50/500/1000/25K
Preis: $0.09-$1.85
Verpackung Informationen: 54 Stück in 1 Tablett, 22 Tabletts in 1 Karton, also 37 x 30 x 30 cm, 10 kg (1080 Stück) pro Karton
Lieferzeit: 1 Tag, Schiff heute
Zahlungsbedingungen: TT, Net30/60/90 Tage
Versorgungsmaterial-Fähigkeit: 3000000/Monat
Serie: |
Vertikaler RJ45-Anschluss |
Teilenummer: |
LPJD0713DNL |
Ethernet: |
10/100/1000Base-T |
LED: |
Ohne geführt |
Betriebstemperatur: |
0 ° C bis +70 ° C. |
Orientierung: |
Top-Eintrag |
Höhe: |
16.6 mm |
Länge: |
21.59mm |
Breite: |
16.00mm |
Dateien: |
Datenblatt, PCB-Footprint und 3D-STEP verfügbar |
Serie: |
Vertikaler RJ45-Anschluss |
Teilenummer: |
LPJD0713DNL |
Ethernet: |
10/100/1000Base-T |
LED: |
Ohne geführt |
Betriebstemperatur: |
0 ° C bis +70 ° C. |
Orientierung: |
Top-Eintrag |
Höhe: |
16.6 mm |
Länge: |
21.59mm |
Breite: |
16.00mm |
Dateien: |
Datenblatt, PCB-Footprint und 3D-STEP verfügbar |

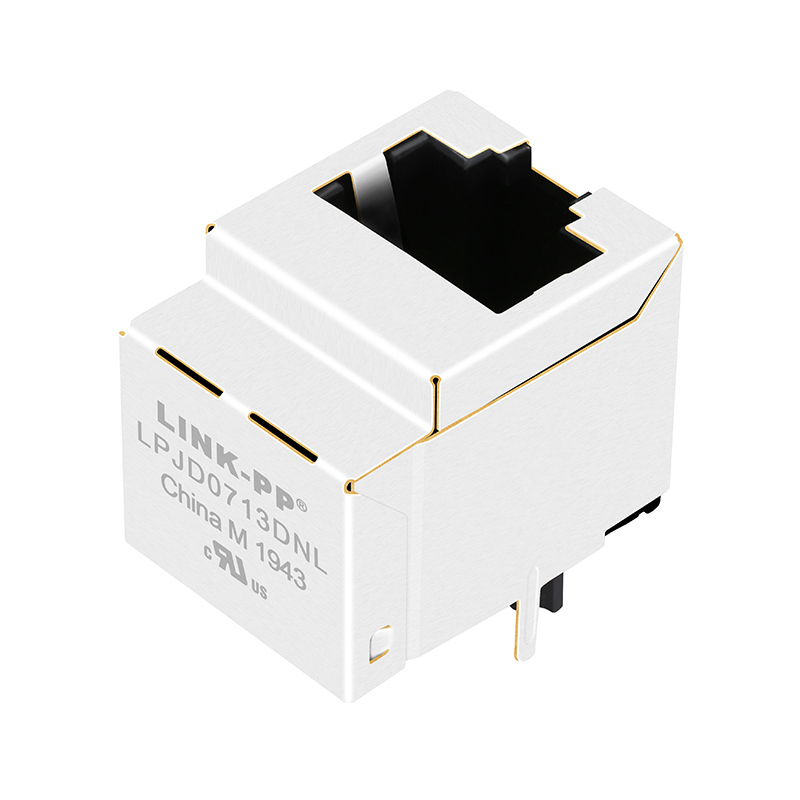

The LINK-PP LPJD0713DNL is a 1 ×1 vertical (top-entry) RJ45 connector with integrated magnetics, designed for 10/100/1000BASE-T Ethernet applications. Featuring a built-in transformer, excellent EMI performance, and no-LED design, it delivers cost-effective, high-reliability Ethernet connectivity for compact embedded and industrial systems.
Ideal for applications where board space, simplified design, and long-term reliability are priorities.
| Parameter | Description |
|---|---|
| Product Model | LPJD0713DNL |
| Connector Type | RJ45 w/ Integrated Magnetics |
| Port Configuration | 1×1 Single Port |
| Speed | 10/100/1000BASE-T |
| Transformer Ratio | 1CT:1CT |
| OCL | ≥ 350 µH @ 100kHz, 0.1V, 8mA |
| Isolation Voltage | 1500 Vrms |
| Mounting Style | Vertical / Top Entry |
| Termination | Through-Hole |
| Shielding | Metal shield |
| Contact Plating Options | 6µ" / 15µ" / 30µ" Gold |
| Operating Temperature | 0°C to +70°C |
| Housing Material | High-temperature thermoplastic |
| Compliance | RoHS, REACH, UL, ISO9001/14001 |
This Vertical RJ45 connector supports PHYs from:
Offers plug-and-play compatibility with major industry Ethernet controllers.
