Produkt-Details
Herkunftsort: Guangdong, China
Markenname: LINK-PP
Zertifizierung: UL,RoHS,Reach,ISO
Modellnummer: 74984104400
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 400/2000/10K/25K
Preis: $0.6-$3.0
Verpackung Informationen: Gurt und Rolle
Lieferzeit: in "Stock Ship heute"
Zahlungsbedingungen: TT, Tage NET30/60/90
Versorgungsmaterial-Fähigkeit: 5KK/Monat
P/n: |
74984104400 |
PHY-Chip-Modus: |
Aktuell |
Serie: |
We-rj45 Lan durch den Loch-Reflow |
Poe+Bewertung: |
720 mA pro Mittelklasse |
Einhaltung: |
IEEE 802.3at |
Isolierungstestspannung: |
2250 V Gleichstrom |
Betriebstemperatur: |
-40 °C °C bis +85 |
Tab-Richtung: |
Tab Up |
P/n: |
74984104400 |
PHY-Chip-Modus: |
Aktuell |
Serie: |
We-rj45 Lan durch den Loch-Reflow |
Poe+Bewertung: |
720 mA pro Mittelklasse |
Einhaltung: |
IEEE 802.3at |
Isolierungstestspannung: |
2250 V Gleichstrom |
Betriebstemperatur: |
-40 °C °C bis +85 |
Tab-Richtung: |
Tab Up |
|
Feature |
Specification |
|---|---|
|
Code |
74984104400 |
|

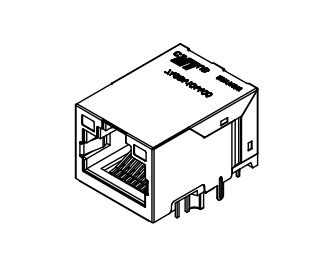

Product Series |
WE-RJ45 LAN |
|
Connector Type |
RJ45, 1 Port, 1 Row |
|
Number of Contacts |
8 Contact |
|
Number of Positions |
8 Position |
|
Mounting Type |
Through Hole Reflow (THR) |
|
Orientation |
90° Angle (Right) |
|
LED Indicators |
green/yellow - green/yellow |
|
Shielding |
Shielded for EMI protection |
|
Length |
21.60mm |
|
Width |
16.00mm |
|
Height |
13.60mm |
|
Operating Temperature |
-40°C to +85°C |
|
Mating Cycles |
750 cycles |
|
Moisture Sensitivity Level (MSL) |
Level 1 (unlimited) |
|
Housing Material |
Thermoplastic LCP, Black |
|
RoHS Status |
Compliant with ROHS3 |
|
Applications |
Supports 10/100 Base-T Ethernet, AutoMDIX, and Power over Ethernet+ (PoE+) |
|
Property |
Test Conditions |
Value |
Unit |
Tolerance |
|---|---|---|---|---|
|
Inductance |
100 kHz / 100 mV |
350 |
µH |
min. |
|
Insulation Test Voltage |
1 min |
2250 |
V (DC) |
min. |
|
Insertion Loss |
1-100 MHz |
-1 |
dB |
max. |
|
Return Loss |
1-30 MHz |
-18 |
dB |
min. |
|
Return Loss |
30-60 MHz |
-14 |
dB |
min. |
|
Return Loss |
60-80 MHz |
-12 |
dB |
min. |
|
Return Loss |
80-100 MHz |
-10 |
dB |
min. |
|
Crosstalk |
1-60 MHz |
-32 |
dB |
min. |
|
Crosstalk |
60-100 MHz |
-30 |
dB |
min. |
|
Common Mode Rejection Ratio |
1-30 MHz |
-35 |
dB |
min. |
|
Common Mode Rejection Ratio |
30-60 MHz |
-32 |
dB |
min. |
|
Common Mode Rejection Ratio |
60-100 MHz |
-30 |
dB |
min. |
|
Turns Ratio |
|
1:1 |
|
±2% |
|
Data Rate |
|
100BASE-TX |
|
