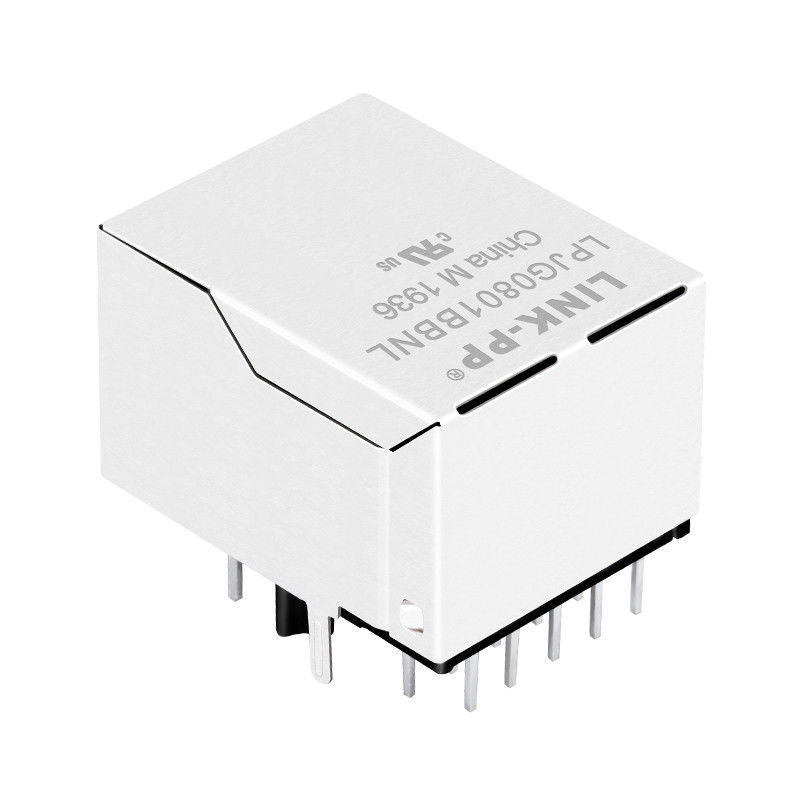

| Spezifikation: | UE-LA1S109-43LF | P/N: | LPJG0801BBNL |
|---|---|---|---|
| PWB-Montage-Orientierung: | Seiteneintritt (rechtwinklig) | Jack-Art: | Frau rj45 |
| Magnetics: | 8 Kerne Magnetics | Proben: | Verfügbar |
| Höhepunkt: | einzelner Hafen RJ45,geschirmte rj45-Stecker |
||
| ELEKTRISCHES SPECFICATIONS @25℃ |  |
||
| Verhältnis 1.Turn (± 2%): | |||
| TX=1CT: 1CT RX=1CT: 1CT | |||
| 2.Inductance OCL: MINUTE 350uH | |||
| @100KHz/0.1V, Neigung DC-8mA | |||
| Verlust 3.Insertion: | |||
| -1.0dB MAX @ 1.0-65MHz | |||
| Verlust 4.Return: | |||
| -20dB MINUTE @ 1-10MHz | |||
| -16dB MINUTE @ 10-30MHz | |||
| -12dB MINUTE @ 30-60MHz | |||
| -10dB MINUTE @ 60-100MHz | |||
| Gespräch 5.Cross: | |||
| -40dB MINUTE @ 1-30MHz | |||
| -35dB MINUTE @ 30-60MHz | |||
| -30dB MINUTE @ 60-100MHz | |||
| Ablehnung des Modus-6.Common: | |||
| -30dB MINUTE @ 1-50MHz | |||
| -20dB MINUTE @ 50-150MHz | |||
| Test 7.Hipot: MINUTE 1500Vrms | |||
| 8.Operating Temperaturspanne: 0℃ ZU 70℃ | |||
