H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

China LINK-PP INT'L TECHNOLOGY CO., LIMITED zertifizierungen
China LINK-PP INT'L TECHNOLOGY CO., LIMITED zertifizierungen
WOW, 100% geprüft, nulldefektes

—— TI

LINK-PP ist unser bester Lieferant in China

—— Intel

Dank viel für die Lieferung ausgezeichneten RJ45 und des Transformators, LINK-PP verdient die Erwägung Worldwidely

—— CISCO

LINK-PP ist Flexart ein Verkäufer für alles Verbindungsstück RJ45 und Transformator

—— Flextronics

Ich bin online Chat Jetzt

H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer
H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

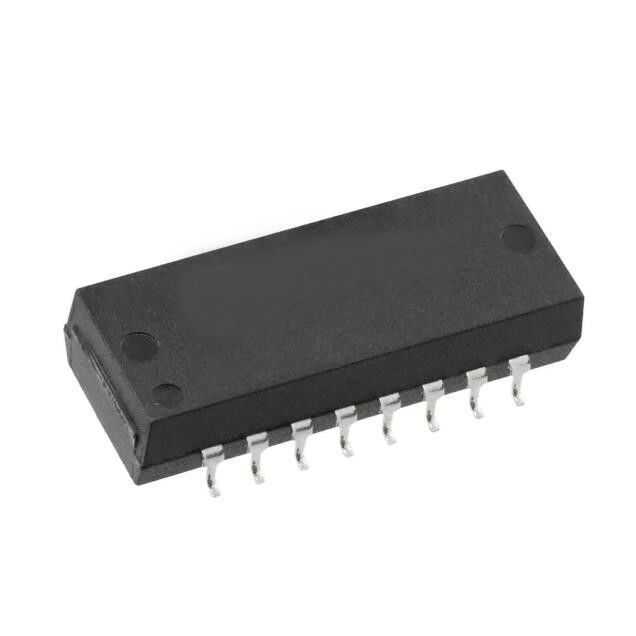

Großes Bild :  H1012NL / H1012NLT Isolation and Data Interface (Encapsulated) Transformer

Produktdetails:
Herkunftsort: Guangdong, China
Markenname: LINK-PP
Zertifizierung: UL,RoHS,Reach,ISO
Modellnummer: H1012NL/H1012NLT
Zahlung und Versand AGB:
Min Bestellmenge: 400/2000/10K/25K
Preis: $0.06-$3.2
Verpackung Informationen: T&R
Lieferzeit: Auf Lager
Zahlungsbedingungen: TT, Tage NET30/60/90
Versorgungsmaterial-Fähigkeit: 3KK/Month
Ausführliche Produkt-Beschreibung
Pn#: H1012NL/H1012NLT Schnittstelle: 10 Mbps
Proben: Verfügbar Paket: SMD
Temperatur: 0℃ zu +70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
Markieren:

Einzelner Transformator des Ethernet-100BASE-TX

,

Isolierungs-Transformator des Ethernet-1CT/1CT

,

10/100Base-T Lan Magnetic Transformers

HS12703 10/100Base-T Ethernet Single Port Transformer Surface Mounting



Part Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
ET (Volt-Time) -
Turns Ratio - Primary:Secondary 1CT:1CT
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.390" W (25.40mm x 9.91mm)
Height - Seated (Max) 0.245" (6.22mm)
Operating Temperature 0°C ~ 70°C
Weight 0.11 oz (3.13 g)
Electrical Specifications @25℃
1.Turns Ratio:
  TX=1CT:1CT     RX=1CT:1CT
2.OCL(100KHz/0.1Vrms):
  350uH Min
3.Insertion Loss:
  0.3-100MHz: -1.0dB Max
4.Return Loss:
  30MHz: -18dB Min
  60MHz: -16dB Min
  100MHz:-12dB Min
5.CMRR:
  30MHz: -45dB Min
  50MHz: -40dB Min
  100MHz:-35dB Min
6.Hi-Pot:1500Vrms Min
7.Operating Temperature: 0℃~70℃.



                                           Why Choose Us
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification:
•ISO 9001:2008
•UL Certification
•Reach Certitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy:
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE(Tyco)For 10 Years
•Successful Customer:Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI(Texas Instruments)
•Quality Guarantee:7 Years
Competitive Price And Service:
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy:
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
